Industrial Wet/Wet Differential Pressure Transmitter Measures Differentials on High Line Pressures
- Low Differential Pressure at High Line Pressure - up to 5,000 psi
- All Stainless Steel Construction
- Hermetically Sealed for Harsh Environments
- High Overpressure Capability
- Excitation 10 to 40 Vdc
- Accuracy Value 0 to 5 Vdc ±10% adj
- Input Resistance (Input voltage 12) x 50
- Maximum Compensation Temperature 17°C (60°F)
- Minimum Compensation Temperature 17°C (60°F)
- Repeatability ±0.1% FSO
- Zero Balance ±1% FSO

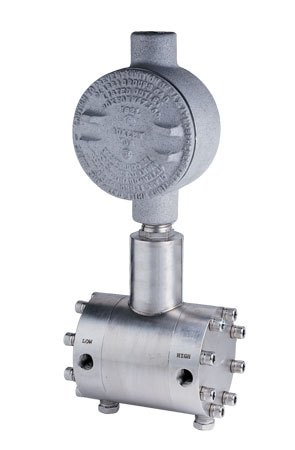

OMEGA’s PX80 Series is a heavy duty, wet-wet, differential pressure transmitter available in ranges from 1 to 5,000 psid. All stainless steel construction and high over pressure protection make the PX80 Series suitable for harsh industrial environments.
SPECIFICATIONS
mV/V Output
Electrical:
Excitation: 10 Vdc (15 V max)
Output: 2 mV/V nominal
Bridge Resistance: 350 Ω
Zero Balance: ±1% FSO
5 Vdc Output
Electrical:
Excitation: 24 to 32 Vdc
Output: 0 to 5 Vdc ±10% adj
Zero Balance: 0 V ±10% adj 4 to 20 mA Output
Electrical:
Excitation: 10 to 40 Vdc
Output: 4 to 20 mA ±0.8 mA adj
Max Loop Resistance: (Input voltage . 12) x 50
Zero Balance: 4 mA ± 0.4 mA adj
COMMON SPECIFICATIONS
Performance:
Linearity: ±0.25% FSO
Hysteresis: ±0.10% FSO
Repeatability: ±0.1% FSO
Environmental:
Operating Temp Range:
mV/V: -73 to 163°C (-100 to 325°F)
Amplified: -46 to 107°C (-50 to 225°F)
Compensated Temp Range:
mV/V: 17 to 71°C (60 to 160°F)
Thermal Effects:
Zero: 0.009% FSO/°C (mV and 5 V
Zero: 0.013% FSO/°C (4 to 20 mA)
Span: 0.009% rdg/°C
Pressure:
Line Pressure: 1500 psi (100 bar) or 150% of rated pressure, whichever is greater
Burst Pressure: 6000 psi (414 bar) minimum
Wetted Parts: 17-4 PH stainless steel and Buna-N O-ring
Pressure Port:
1/4-18 NPTF: For .700 psi
1/8-27 NPTF: For .1000 psi
Electrical Termination:
Style 0 = 3 m (10') cable
Style 1 = PTIH-10-6P (or equiv)
Style 5 = Metal terminal box
Style 6 = Micro DIN
Mating Connector:
Style 1: PT06F-10-6S (not included)
Style 6: Mating connector (included)
Weight: 5 lb
Examples of pricing for popular models is referenced in the 'To Order' box. Use the 'Part Number Builder' below to get pricing for all available models.
SPECIFICATIONS
mV/V Output
Electrical:
Excitation: 10 Vdc (15 V max)
Output: 2 mV/V nominal
Bridge Resistance: 350 Ω
Zero Balance: ±1% FSO
5 Vdc Output
Electrical:
Excitation: 24 to 32 Vdc
Output: 0 to 5 Vdc ±10% adj
Zero Balance: 0 V ±10% adj 4 to 20 mA Output
Electrical:
Excitation: 10 to 40 Vdc
Output: 4 to 20 mA ±0.8 mA adj
Max Loop Resistance: (Input voltage . 12) x 50
Zero Balance: 4 mA ± 0.4 mA adj
COMMON SPECIFICATIONS
Performance:
Linearity: ±0.25% FSO
Hysteresis: ±0.10% FSO
Repeatability: ±0.1% FSO
Environmental:
Operating Temp Range:
mV/V: -73 to 163°C (-100 to 325°F)
Amplified: -46 to 107°C (-50 to 225°F)
Compensated Temp Range:
mV/V: 17 to 71°C (60 to 160°F)
Thermal Effects:
Zero: 0.009% FSO/°C (mV and 5 V
Zero: 0.013% FSO/°C (4 to 20 mA)
Span: 0.009% rdg/°C
Pressure:
Line Pressure: 1500 psi (100 bar) or 150% of rated pressure, whichever is greater
Burst Pressure: 6000 psi (414 bar) minimum
Wetted Parts: 17-4 PH stainless steel and Buna-N O-ring
Pressure Port:
1/4-18 NPTF: For .700 psi
1/8-27 NPTF: For .1000 psi
Electrical Termination:
Style 0 = 3 m (10') cable
Style 1 = PTIH-10-6P (or equiv)
Style 5 = Metal terminal box
Style 6 = Micro DIN
Mating Connector:
Style 1: PT06F-10-6S (not included)
Style 6: Mating connector (included)
Weight: 5 lb
Examples of pricing for popular models is referenced in the 'To Order' box. Use the 'Part Number Builder' below to get pricing for all available models.
