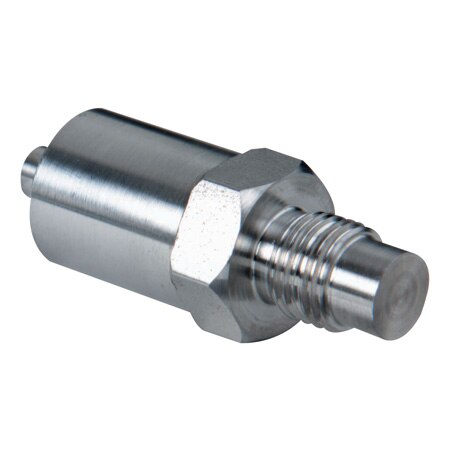

Miniature Flush Diaphragm Pressure Transducer 1/2-20 UNF Fitting
- Miniature Flush Diaphragm
- Hermetically Sealed in Stainless Steel Case
- Available in PSIA, PSIS, PSIG, and Metric Ranges
- NIST Traceable Calibration Certificate
- Excitation 5 Vdc
- Accuracy Value 1
- Input Resistance 350 Ω nominal
- Maximum Compensation Temperature 16°C (60°F)
- Minimum Compensation Temperature 16°C (60°F)
- Pressure Burst Pressure 300% of capacity or 30
- Repeatability ±0.1% of FSO
- Wetted Materials Stainless Steel Diaphragm
- Zero Balance ±2.0% of FSO
SPECIFICATIONS
Excitation: 5 Vdc
Output: 2 mV/V -20% +50% (1 mV/V 50 psi ranges)
Accuracy: 1.0% linearity and hysteresis combined
Repeatability: ±0.1% of FSO
Balance: ±2.0% of FSO
Bridge Resistance: 350 Ω nominal
Operating Temperature Range: -54 to 121°C (-65 to 250°F)
Compensated Temperature Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
Zero: ±0.01% FS/oF
Span: ±0.02% FSO/°F
Proof Pressure: 150% of capacity
Burst Pressure Minimum: 300% of capacity or 30,000 psi, whichever is less
Electrical Connections: 1.5 m (5'); 4-conductor cable
Pressure Connection: ½-20 UNF-2A
Wetted Parts: 17-4 PH stainless steel
Excitation: 5 Vdc
Output: 2 mV/V -20% +50% (1 mV/V 50 psi ranges)
Accuracy: 1.0% linearity and hysteresis combined
Repeatability: ±0.1% of FSO
Balance: ±2.0% of FSO
Bridge Resistance: 350 Ω nominal
Operating Temperature Range: -54 to 121°C (-65 to 250°F)
Compensated Temperature Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
Zero: ±0.01% FS/oF
Span: ±0.02% FSO/°F
Proof Pressure: 150% of capacity
Burst Pressure Minimum: 300% of capacity or 30,000 psi, whichever is less
Electrical Connections: 1.5 m (5'); 4-conductor cable
Pressure Connection: ½-20 UNF-2A
Wetted Parts: 17-4 PH stainless steel
