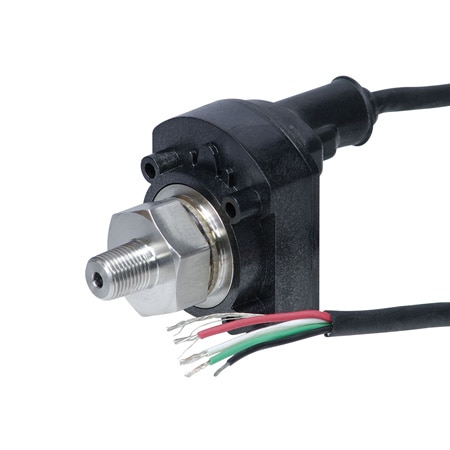

OEM Style Pressure Transducers Stainless Steel Wetted Parts with Current Output
- Digitally Compensated for Low Total Accuracy and Interchangeability
- Gage, Absolute, Vacuum, and Compound Ranges Available
- Rugged Compact Design
- RFI/EMI Protection
- Excitation 11 to 30 Vdc
- Accuracy Value 4 to 20 mAdc (2 wire)
- Input Resistance 50 x (supply voltage -11) Ohms
- Vibration 10 g
- Shock 30 g
OMEGA’s PX482A Series transducers, designed for general industrial and commercial requirements, offer excellent performance in a wide range of applications. They are based on proven micro-machined silicon technology, providing high reliability, long-term stability, and low cost.
The PX482A is fully digitally compensated for the effects of pressure and temperature change. It is extremely accurate, less than 0.3% FS reference accuracy, and less than 1% FS over its compensated temperature range. Wetted parts are made of 316L stainless steel for a wide range of media compatibility.
SPECIFICATIONS
Excitation: 11 to 30 Vdc
Output: 4 to 20 mAdc (2 wire)
Max. Loop Resistance: 50 x (supply voltage -11) Ohms
Accuracy: 0.3% BFSL maximum (includes linearity, hysteresis, and repeatability)
Total Error Band: 1% FS (includes temperature effects within compensated temperature range)
Operating Temperature: -40 to 80°C (-40 to 176°F)
Compensated Temperature:-25 to 75°C (-13 to 167°F)
Process Temperature: -40 to 100°C (-40 to 212°F)
1 Year Stability: <0.25% FS
Proof Pressure: 2x FS
Burst Pressure: 3x FS
Wetted Parts: 316L stainless steel
Vibration: 10 g, 55 to 2000 Hz
Shock: 30 g
Process Connection: 1/8 NPT male
Electrical Connection: PX482A: 0.4 m (18') 24 AWG cable
PX482AD: DIN 43650 micro mini C connector, mating connector included
Weight: 142 g (5 oz)
The PX482A is fully digitally compensated for the effects of pressure and temperature change. It is extremely accurate, less than 0.3% FS reference accuracy, and less than 1% FS over its compensated temperature range. Wetted parts are made of 316L stainless steel for a wide range of media compatibility.
SPECIFICATIONS
Excitation: 11 to 30 Vdc
Output: 4 to 20 mAdc (2 wire)
Max. Loop Resistance: 50 x (supply voltage -11) Ohms
Accuracy: 0.3% BFSL maximum (includes linearity, hysteresis, and repeatability)
Total Error Band: 1% FS (includes temperature effects within compensated temperature range)
Operating Temperature: -40 to 80°C (-40 to 176°F)
Compensated Temperature:-25 to 75°C (-13 to 167°F)
Process Temperature: -40 to 100°C (-40 to 212°F)
1 Year Stability: <0.25% FS
Proof Pressure: 2x FS
Burst Pressure: 3x FS
Wetted Parts: 316L stainless steel
Vibration: 10 g, 55 to 2000 Hz
Shock: 30 g
Process Connection: 1/8 NPT male
Electrical Connection: PX482A: 0.4 m (18') 24 AWG cable
PX482AD: DIN 43650 micro mini C connector, mating connector included
Weight: 142 g (5 oz)
