General Purpose Pressure Transducer
- All Stainless Steel Construction
- High Operating Temperature 163°C (325°F)
- Hermetically Sealed for Harsh Environments
- Available in Vented Gage, Sealed Gage or Absolute Pressure Models
- Excitation 10 Vac/Vdc (15V max)
- Accuracy Value 0.25
- Input Resistance 360 Ω min
- Output Resistance 350 ±5 Ω
- Wetted Materials Stainless Steel Diaphragm
- Zero Balance ±2.0% FS

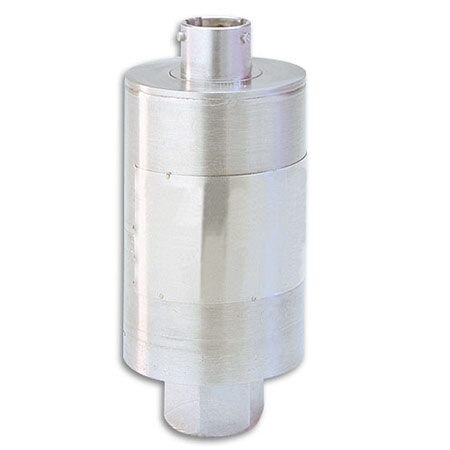

OMEGA’s PX35 Transducer Series is a rugged, general purpose 30 millivolt output, industrial pressure transducer. It has a hermetically sealed, all stainless steel case which makes it suitable for the harsh conditions found in industry. The PX35 is available in gage, absolute or sealed gage models. A Bendix style connector is standard, or a 10 ft cable is also available.
SPECIFICATIONS
Excitation: 10 Vdc (15Vdc max)
Output: 3 mV/V nominal
Accuracy: 0.25% includes liniearity, hysteresis and repeatability
Input Resistance: 360 Ω Min.
Output Resistance: 350 ±5 Ω
Zero Balance: ±2.0% FS
Operational Temp Range: -73 to +163°C (-100 to +325°F)
Compensated Temp Range: +16 to +71°C (60 to +160°F)
Thermal Effects:
Span: 0.003% Rdg/°F
Zero: 0.004% FS/°F
Proof Pressure: 150% of rated pressure
Burst Pressure: 300% of rated pressure
Wetted Parts: 17-4PH Stainless Steel
Pressure Port:
<10000 psi: 7⁄16-20 UNF-2A Internal
≤10,000 psi: 9⁄16-18, ¼' HP tube
Electrical Connection:PH1H-10-6P or equal
Optional: 10 ft (3m) Cable
Mating Connector: PT06A-10-6S (not included)
SPECIFICATIONS
Excitation: 10 Vdc (15Vdc max)
Output: 3 mV/V nominal
Accuracy: 0.25% includes liniearity, hysteresis and repeatability
Input Resistance: 360 Ω Min.
Output Resistance: 350 ±5 Ω
Zero Balance: ±2.0% FS
Operational Temp Range: -73 to +163°C (-100 to +325°F)
Compensated Temp Range: +16 to +71°C (60 to +160°F)
Thermal Effects:
Span: 0.003% Rdg/°F
Zero: 0.004% FS/°F
Proof Pressure: 150% of rated pressure
Burst Pressure: 300% of rated pressure
Wetted Parts: 17-4PH Stainless Steel
Pressure Port:
<10000 psi: 7⁄16-20 UNF-2A Internal
≤10,000 psi: 9⁄16-18, ¼' HP tube
Electrical Connection:PH1H-10-6P or equal
Optional: 10 ft (3m) Cable
Mating Connector: PT06A-10-6S (not included)
