Metric, Constant Moment Beam Load Cell with Overload Stops
Added to Your Shopping Cart
Configuration complete.
Please add to cart to keep it or exit the configuration
Please add to cart to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
- 5-Point NIST Traceable Calibration with 59 kOhm Shunt Cal Data Provided
- 4-Direction Overload Stops
- 0.25% Interchangeability for Scale Applications
- High-Quality All Stainless Steel Construction
- Hysteresis ±0.03% FSO
- Input Resistance 360 Ω minimum
- Linearity ±0.03% FSO
- Load Cell Material Stainless Steel
- Maximum Ambient Temperature 82 {C} (180 {F})
- Maximum Compensation Temperature 71 {C} (160 {F})
- Measurement Type Load
- Output Resistance 350 ±10 Ω
- Minimum Compensation Temperature 16 {C} (60 {F})
- Number of Conductors 4
- Repeatability ±0.02% FSO
- Output Voltage 2 mV/V ±0.25%
- Safe Overload 150% of rated Capacity
- Ultimate Overload 300% of Capacity
- Temperature Effects Zero: ±0.0025% FSO/°F
- Zero Balance ±1% FSO
- Style Beam

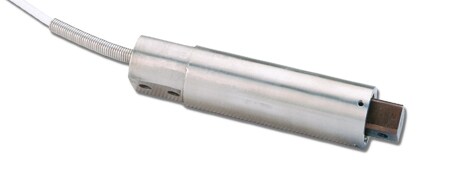

OMEGA’s LCM601 Series comprises extremely low-capacity industrial load cells with built-in overload stops in all 4 directions for added durability. They offer high accuracy and rugged construction in a small package and are ideal for small scales and for industrial weighing applications.
The LCM601 is also available in standard configurations, with 0-1 to 0-25 lb ranges and standard threads. Please see the LC601 for complete details, or contact our Pressure department for more information..
SPECIFICATIONS
Excitation: 10 Vdc, 15V max
Output: 2 mV/V ±0.25%
5-Point Calibration (in Compression): 0%, 50%, 100%, 50%, 0%
Linearity: ±0.03% FSO
Hysteresis: ±0.03% FSO
Repeatability: ±0.02% FSO
Zero Balance: ±1% FSO
Operating Temperature Range: -34 to 82°C (-30 to 180°F)
Compensated Temperature Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
Zero: ±0.0025% FSO/°F
Span: ±0.0010% FSO/°F
Safe Overload: 150% of rated capacity
Ultimate Overload: 300% of capacity
Input Resistance: 360 ? minimum
Output Resistance: 350 ±10 ?
Full Scale Deflection: 0.005 to 0.015" typ
Construction: Stainless steel
Electrical Connections: 1.5 m (5') 4-conductor shielded color-coded cable
The LCM601 is also available in standard configurations, with 0-1 to 0-25 lb ranges and standard threads. Please see the LC601 for complete details, or contact our Pressure department for more information..
SPECIFICATIONS
Excitation: 10 Vdc, 15V max
Output: 2 mV/V ±0.25%
5-Point Calibration (in Compression): 0%, 50%, 100%, 50%, 0%
Linearity: ±0.03% FSO
Hysteresis: ±0.03% FSO
Repeatability: ±0.02% FSO
Zero Balance: ±1% FSO
Operating Temperature Range: -34 to 82°C (-30 to 180°F)
Compensated Temperature Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
Zero: ±0.0025% FSO/°F
Span: ±0.0010% FSO/°F
Safe Overload: 150% of rated capacity
Ultimate Overload: 300% of capacity
Input Resistance: 360 ? minimum
Output Resistance: 350 ±10 ?
Full Scale Deflection: 0.005 to 0.015" typ
Construction: Stainless steel
Electrical Connections: 1.5 m (5') 4-conductor shielded color-coded cable
