DIN Strain Gauge to Frequency Converter for Micro PLCs
Low Cost Analog to Frequency Modules for Micro PLC Digital Inputs
Volume discounts available
Volume Discount Schedule
| Quantity | Price each |
|---|---|
| 1-4 | $216.64 |
| 5-9 | $205.81 |
| 10-24 | $201.48 |
| 25-49 | $192.81 |
| 50-99 | $188.48 |
| 100+ | $184.14 |
Added to Your Shopping Cart
Configuration complete.
Please add to cart to keep it or exit the configuration
Please add to cart to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
- DRP-8500 Series Connect to Micro PLCs High Speed Counter Inputs
- DRP-8600 Series Connect to Micro PLCs 24 VDC Logic Inputs
- Voltage, Current, RTD, Thermocouple and Strain Gage Inputs
- DIN Rail Mountable
DRP-8555 Model Options
View all modelsEdit these specs to order a different model. Not all combinations are valid. Options compatible with previous selections will be in bold.
*Highlighted options are not compatible. Please select a different combination.
Number of Inputs
Input Type
Input Ranges
Output Type
Other Features

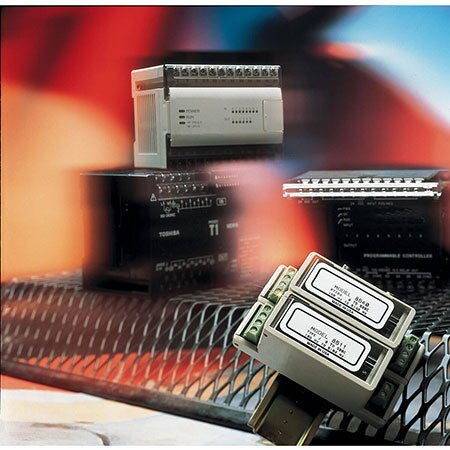

The DRP-8500 Series modules offer a low cost analog I/O solution for micro PLCs. The series is ideal for discrete automation applications requiring one or two analog I/O channels. All models in the series interface with the PLC high speed counter inputs or pulse outputs. Digital signal pulse-width is fixed at 50 µsec. They will accept a variety of analog inputs, such as thermocouple, RTD, strain gage, voltage, and current. Some DRP-8500 models can be connected to pulse outputs from a PLC, and will then provide an analog output. The DRP-8500 series modules have an isolated floating optocoupler transistor which provides DC isolation from the input, output and DC power. The output transistor is fully floating allowing either source or sink connection to the PLC. The DRP-8500 resolution is 12 bits. The DRP-8600 Series modules are designed to interface with the low-speed 24 Vdc logic inputs of a PLC for applications requiring additional analog inputs. The DRP-8600 modules output a square wave up 500 Hz with a 50-50 duty cycle, allowing the PLC to count the frequency producing better than 8- bit resolution, 1 part in 500. The DRP-8600 module has an isolated floating optocoupler transistor which provides DC isolation from the input, output and DC power. The output transistor is fully floating allowing either source or sink connection to the PLC. All modules are housed in a plastic case with a built-in U-foot for mounting on standard DIN rails. Connections are made to screw clamp terminals that accept wire sizes 22 AWG to 16 AWG.
Common Specifications (contact engineering for detailed specifications)
Connections: Screw terminals, 22 to 16 AWG
Power: 24 volts nominal
Size: 42 mmH x 27 mmW x 96 mmL (1.65 x 1.06 x 3.78")
Weight: 85g (3 oz)
Common Specifications (contact engineering for detailed specifications)
Connections: Screw terminals, 22 to 16 AWG
Power: 24 volts nominal
Size: 42 mmH x 27 mmW x 96 mmL (1.65 x 1.06 x 3.78")
Weight: 85g (3 oz)
| Model Number | Input | Output |
| Analog to Frequency (High Speed Counter Input) | ||
| DRP-8505 | 4 mA to 20 mA | 1,000 to 5,000 Hz from floating optocoupler |
| DRP-8506 | 0 to 5Vdc | 0 to 5,000 Hz from floating optocoupler |
| DRP-8507 | 0 to 10Vdc | 0 to 5,000 Hz from floating optocoupler |
| Frequency to Analog (High Speed Counter Input) | ||
| DRP-8508 | 1000 to 5000 Hz optocoupler diode (7 mA into 3.3 KΩ, 20µS pulse width min) | 4 to 20 mA |
| DRP-8509 | 0 to 5000 Hz optocoupler diode (7 mA into 3.3 KΩ, 20µS pulse width min) | 0.1 to 5 Vdc |
| DRP-8510 | 0 to 2000 Hz optocoupler diode (7 mA into 3.3 KΩ, 20µS pulse width min) | 0.05 to 5 Vdc |
| DRP-8513 | 400 to 2000 Hz optocoupler diode (7 mA into 3.3 KΩ, 20µS pulse width min) | 20 mA |
| DRP-8514 | 0 to 2000 Hz optocoupler diode (7 mA into 3.3 KΩ, 20µS pulse width min) | 10 Vdc |
| Thermocouple to Frequency (High Speed Counter Input) | ||
| DRP-8511 | Type J T/C 0 to 500°C | 100 to 5100 Hz from floating optocoupler |
| DRP-8512 | Type K T/C 0 to 500° C | 100 to 5100 Hz from floating optocoupler |
| RTD to Frequency (High Speed Counter Input) | ||
| DRP-8540 | Platinum RTD -100 to +400°C 100 ohm α = 0.00385 2 or 3 Wire Connection | 100 to 5100 Hz from floating optocoupler |
| Strain Gage to Frequency (High Speed Counter Input) | ||
| DRP-8555 | 0 to 50 mV Differential Signal from full bridge Strain Gage, 10 V excitation provided | 0 to 5 KHz from floating optocoupler |
| Analog to Frequency (Low Speed Pulse Input) | ||
| DRP-8605 | 4-20 mA | 100-500 Hz from floating optocoupler |
| DRP-8606 | 0-5 Vdc | |
| DRP-8607 | 0-10 Vdc | 0-500 Hz from floating optocoupler |
| Type J T/C to Frequency Converters(Low Speed Pulse Input) | ||
| DRP-8611 | Type J T/C 0 to 1000°C | 10-1100 Hz from floating optocoupler |
| DRP-8612 | Type K T/C 0 to 1250°C | 5 Hz to 630 Hz from floating optocoupler |
